Minn Kota service providers are expected to repair Ulterra motors. The written repair manual can be found on the eLibrary. Since the release of Ulterra in early 2015 there have been a few minor design changes to improve some of the original components. These changes did not represent safety issues, but are an indication of an effort to continuously improve the reliability and performance of the Ulterra product line. If the latest/current component part is not already installed then the installation of the current part(s) should be considered an “automatic” update:
-

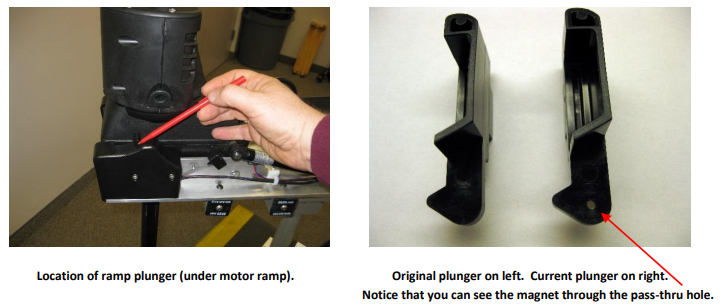

Motor Ramp Plunger with Magnet Holder, p/n 2203700:
Beginning at serial number P224MK and later all magnet holders are using a mechanically staked-in process to prevent magnet loss. Verify Ulterra models with older serial numbers have the updated ramp plunger with staked-in magnet. -

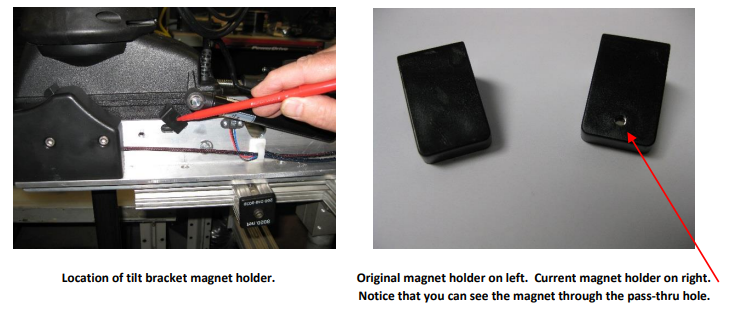

Tilt Bracket Magnet Holder, p/n 2208600:
Beginning at serial number P224MK and later all magnet holders are using a mechanically staked-in process to prevent magnet loss. Verify Ulterra models with older serial numbers have the updated ramp plunger with staked-in magnet. -

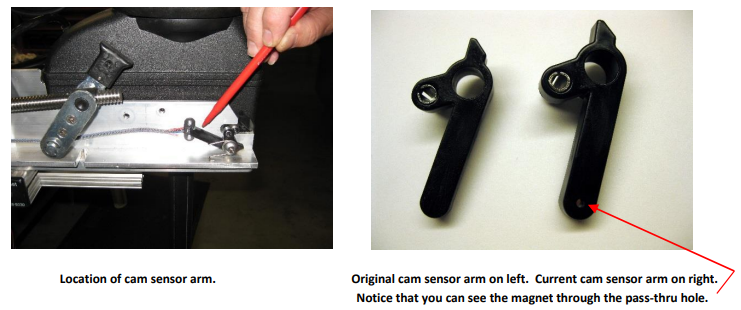

Cam Sensor Arm with Magnet Holder, p/n 2777900:
Beginning at serial number P224MK and later all magnet holders are using a mechanically staked-in process to prevent magnet loss. Verify Ulterra models with older serial numbers have the updated ramp plunger with staked-in magnet. -

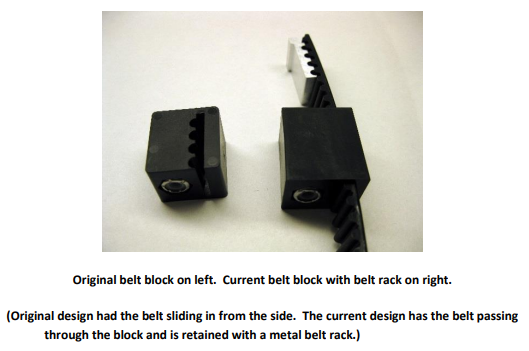

Upper Belt Block with Belt Rack Kit, p/n 2882801:
Beginning at serial number P349MK the upper belt block for tensioning the belt has been changed to a multi-piece design to lessen the chance of the belt pulling out of the control box. The original belt block, p/n 2202800, supersedes to p/n 2882801 which includes the belt rack.
